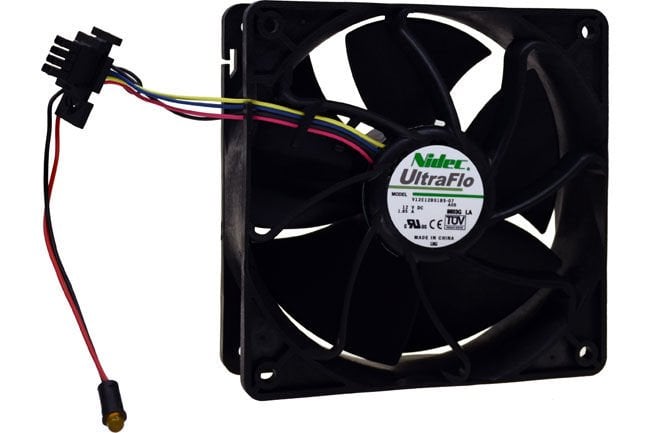

Nidec V12E12BS1B5-07 120x120x38 12V DC 1,85A
(0) Yorum - 0 Puan
Kategori
Stok Kodu
V12E12BS1B5-07
Fiyat
19,00 USD + KDV
*91,70 TL den başlayan taksitlerle!
980,40 TL
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
| sort by power source type | DC |
|---|---|
| Size | W120×H120 mm |
| Size | □4.724 |
| Length | 38 mm |
| Length | 1.496 mm |
| Operation temperature | -10～70 ℃ |
| Lifespan | 70000 |
| Mass | 265～265 ℃ |
| Bearing | Ball bearing |
| Companies handling the product | NIDEC CORPORATION |
| rated voltage | 10.2～13.8 V |
|---|---|
| Operating current | 1.85～1.85 A |
| Rated input | 22.2～22.2 W |
| Rated speed | 6400～6400 min-1 |
|---|---|
| Maximum air flow (m3/min) | 5.94～5.94 m3/min |
| Maximum air flow (CFM) | 210～210 CFM |
| Maximum static pressure(Pa) | 342～342 Pa |
| Maximum static pressure(inchH2O) | 1.37～1.37 inchH2O |
| Sound pressure(dB[A]) | 63～63 dB[A] |
